Visualizing the FSM

HTML Output

HTML pages can be generated with the -th command line switch.

PlantUML

Or, the PlantUML code for creating the following diagrams can be generated with the -tp command line switch.

/' hsmCommunicator.plantuml This file automatically generated by FSMLang '/ @startuml state IDLE state ESTABLISHING_SESSION state IN_SESSION IDLE: The wakeup state. Also, this is the state to which the machine\n returns when a session times out.\n \n ESTABLISHING_SESSION: The machine is establishing a session. The actual work is being done by the <i>establishSession</i>\n submachine. While in this state, the <i>MESSAGE_RECEIVED</i> event is forwarded to that submachine.\n \n IN_SESSION: A session has been established, and messages are being exchanged with the peer. While in this\n state, the <i>MESSAGE_RECEIVED</i> event is forwarded to the <i>sendMessage</i> submachine.\n \n [*] --> IDLE IDLE --> ESTABLISHING_SESSION : **Event:** SEND_MESSAGE\n**Action:** startSessionEstablishment\n**Event shared with:**\nsendMessage\n note on link Start the session establishment process by activating the <i>establishSession</i> machine. end note ESTABLISHING_SESSION --> IN_SESSION : **Event:** SESSION_ESTABLISHED\n**Action:** completeSessionStart note on link Start the session timer and notify the <i>sendMessage</i> machine that the session is established. end note note left of ESTABLISHING_SESSION **These events loop back:** SEND_MESSAGE: queueMessage Extend the session timer and queue the message Shared with: sendMessage MESSAGE_RECEIVED: passMessageReceived Pass the MESSAGE_RECEIVED event along. Shared with: establishSession sendMessage end note IN_SESSION --> IDLE : **Event:** SESSION_TIMEOUT\n**Action:** none note left of IN_SESSION **These events loop back:** SEND_MESSAGE: requestMessageTransmission Extend the session timer and pass the message to be sent to the <i>sendMessage</i> machine. Shared with: sendMessage MESSAGE_RECEIVED: passMessageReceived Pass the MESSAGE_RECEIVED event along. Shared with: establishSession sendMessage end note @enduml

hsmCommunicator

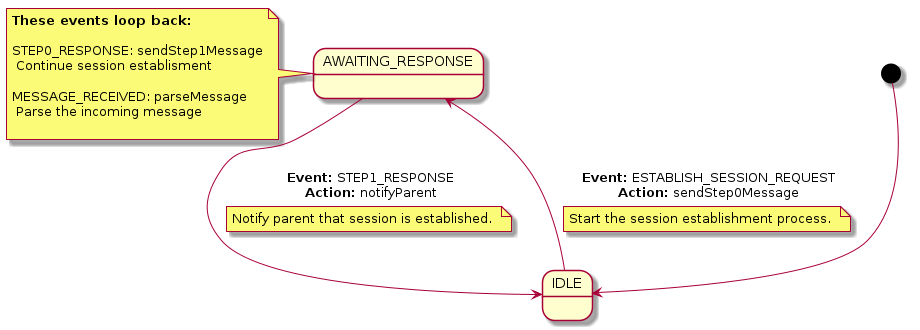

/' establishSession.plantuml This file automatically generated by FSMLang '/ @startuml state IDLE state AWAITING_RESPONSE [*] --> IDLE IDLE --> AWAITING_RESPONSE : **Event:** ESTABLISH_SESSION_REQUEST\n**Action:** sendStep0Message note on link Start the session establishment process. end note AWAITING_RESPONSE --> IDLE : **Event:** STEP1_RESPONSE\n**Action:** notifyParent note on link Notify parent that session is established. end note note left of AWAITING_RESPONSE **These events loop back:** STEP0_RESPONSE: sendStep1Message Continue session establisment MESSAGE_RECEIVED: parseMessage Parse the incoming message end note @enduml

establishSession

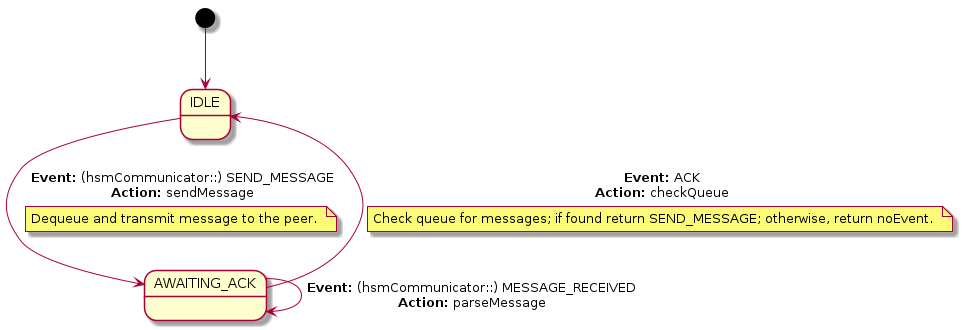

/' sendMessage.plantuml This file automatically generated by FSMLang '/ @startuml state IDLE state AWAITING_ACK [*] --> IDLE IDLE --> AWAITING_ACK : **Event:** (hsmCommunicator::) SEND_MESSAGE\n**Action:** sendMessage note on link Dequeue and transmit message to the peer. end note AWAITING_ACK --> IDLE : **Event:** ACK\n**Action:** checkQueue note on link Check queue for messages; if found return SEND_MESSAGE; otherwise, return noEvent. end note AWAITING_ACK --> AWAITING_ACK : **Event:** (hsmCommunicator::) MESSAGE_RECEIVED\n**Action:** parseMessage @enduml

sendMessage
